Price

Available Options

Hiace

Standard Roof (Diesel)

Ex Lahore Price

(Order Intake on Hold)

Hiace

Standard Roof Dual AC (Diesel)

Ex Lahore Price

(Order Intake on Hold)

Hiace

Standard Roof Dual AC (Gasoline)

Ex Lahore Price

(Order Intake on Hold)

Hiace

High Roof Dual AC (Diesel)

Ex Lahore Price

(Order Intake on Hold)

Exterior

A Consistent Breakthrough Performer

A heritage of proven performance with sleek styling and the enhanced capacity of a Wide and Super Long Body.

Interior

Intelligent Design for Easy Driving

Intelligent design assures improved control and driving ease at all times. Essentials, indicators and switches are positioned for maximum visibility and intuitive operation and the panel-mounted shift lever allows pass-through access from either side of the cabin.

Performance

Powerful and Fuel Efficient Engine

Choose from the powerful acceleration of a 2TR-FE, 2.7L Petrol Engine, 2694cc, 16 Valve DOHC with VVT-i, or a 2KD-FTV, Diesel engine, 2494cc, 16 Valve DOHC.

Safety

Safety Features for Ultimate Driving Pleasure

Driver and Front passenger seats’ SRS (Supplemental Restraint System) airbags

	Engine	Petrol Models			Diesel Models
	Body type	MID ROOF	STD ROOF				HIGH ROOF
	Katashiki	TRH213R-JEMDK	TRH203R-REMDK		KDH202R-REMDY		KDH222R-LEMDY
	Suffix	TR-A2	TR-A1	TR-01	KDH- 08	KDH- 09	KDH- 10
	Variants	With A/C		Without A/C		With A/C
Major Dimensions & Weight
Overall	Length (mm)	4840	4695				5380
	Width (mm)	1880	1695				1880
	Height (mm)	2105	1980				2285
Wheelbase	(mm)	2570	2570				3110
Tread	Front (mm)	1655	1470				1655
Tread	Rear (mm)	1650	1465				1650
Overhang	Front (mm)	1190	1050				1190
Overhang	Rear (mm)	1080	1075				1080
Min. Running Ground Clearance	(mm)	185
Fuel Tank Capacity	Ltr	70
Seating Capacity	(persons)	16	15				16
Engine
Engine Model Code		2TR-FE			2KD-FTV
No. of Cyls & Arrangement		4 Cylinders, In line
Displacement	(cm³)	2694			2494
Compression Ratio		9.6			18.5
Fuel System		EFI			Common Rail Type
Valve mechanism		16 Valve DOHC with VVT-i			16 Valve DOHC
Intake system		Naturally Aspirated			Turbocharger
Max. Output	(kW/RPM)	111/4800			75/3600
Max. Torque	(Nm/RPM)	241/3800			260/1600-2400
Emission Certification		EURO II
Brake Type	Front	Ventilated Disc Brakes
Brake Type	Rear	Leading-Trailing Drum Brakes
Suspension Type	Front	Double Wishbone
Suspension Type	Rear	Leaf Spring Rigid Axle
Power Steering Type		Hydraulic
Exterior
Tyres & Disc Wheels		195/R15C
Rear Window Wiper		Intermittent
Outside Rear View Mirrors		o
Headlamps		Halogen
Mud Guards		o
High Mount Stop Lamp		With LED
Wheel Caps		Full Cap
Spare Tyre		Ground Tyre
Interior
Steering wheel		4-Spoke Urethane
Inside Rear View Mirror		Day & Night
Rear Window Defogger		With Timer

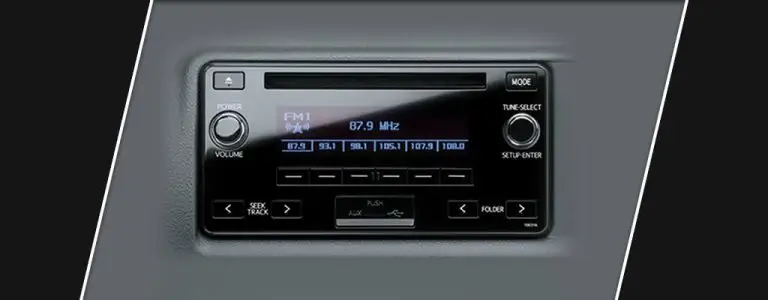

Audio		AM/FM, USB, 2SP
Console Box		Center Seat Back with 2 Cup Holders
Room Lamps		Front (1), Rear (1) W/Switches	Front (1), Rear (2) W/Switches
Seat Material		Fabric	Vinyl Leather				Fabric
Dual Air Conditioner		o		x		o
Heater	Front	o
Heater	Rear	x				o
Rear Headrests		x					o
Steering Column		Manual Tilt
Power Steering		o
Cup Holders		FR:2
Ash Tray		o
Glove Box		Upper:1 Lower:1				Lower:1
Front Headrest		o
Front Seat Reclining		D+P
Rear Seat Adjuster		x					o
Clock		Built-In-Meter
Accessory Connector		DC12V
Assist Grip		FR:3 Slide Door:1	FR:3				FR:3 Slide Door:1
Seat Assist Grip		o
Step Lamp		o	x				o
Sun Visors		D+P
Safety
ABS		x				o
Air Bag System		x				D+P
Seat Belts	Front	3P ELRx2 2P NRx1				3P ELRx2 (D+P: Pretensioner) 2P NRx1
Seat Belts	Rear	13x (2-Point Type)	11x (2-Point Type)				13x (2-Point Type)
Light Remind Warning		With Buzzer
Key Remind Warning		With Buzzer
